Complete 32E 6V rebuilt kit, V-Twin

Complete 32E 6V rebuilt kit, Complete 32E 6V rebuilt kit, V-Twin

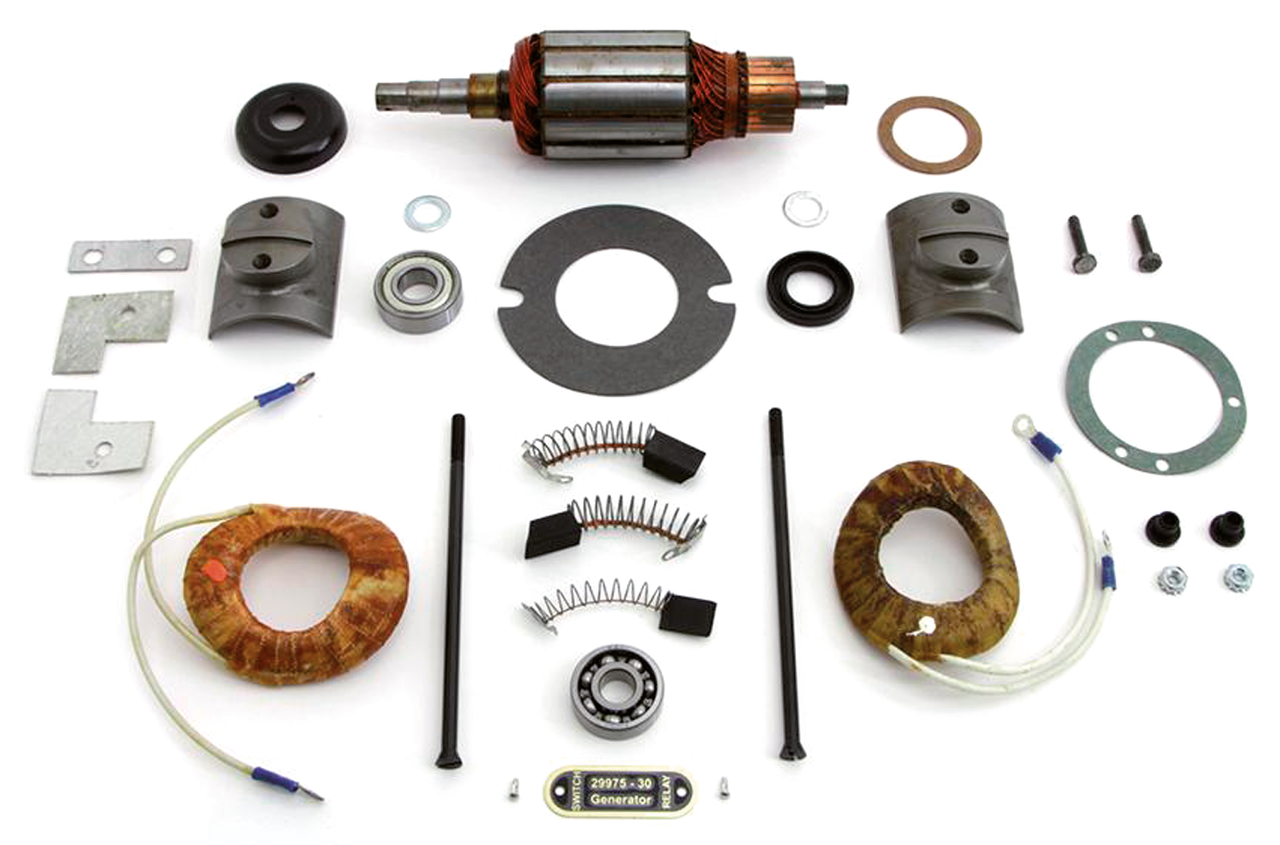

Complete kit to overhaul 6 Volt 32E style generators as used on 1936-1952 E, EL & ELH and 1941-1957 F, FL & FLH. Includes cast end cover, drive gear, bearings, brushes, field coils, armature, pole pieces, gaskets, seals and various screws.

in Stock 0

Brand: V-Twin
Article number:  782197

This product can be find in categorie Generator Parts

Complete 32E 6V rebuilt kit

Polarizing generators and regulators The following information and instructions are for your use, so your warranty will be in effect. No warranty can be in effect if these instructions are not followed. Whenever any component of a generator charged electrical system is serviced it is necessary to re-polarize the complete system, making sure it has the correct polarity so the system will charge in the right direction. If the system is put into service with the wrong polarity it may result in burned relay points, a dead battery and damage to both the regulator and generator. Instructions: 1. To polarize a generator system with a mechanical regulator, momentarily connect a jumper wire of adequate gauge (a battery cable is ideal) between the “bat” and the “gen” terminal on the regulator after all wires have been properly connected and before starting the motor. 2. To polarize a generator system with electronic regulator/ rectifier. Before mounting the generator of the vehicle, place the generator on a non conducting work surface (like a wooden bench) and connect the positive terminal of a battery to the armature terminal of the generator. Then momentarily “flash” the negative battery terminal to the generator field terminal.

———————————————————————————————————–

For more info about this product see our Catalog  05-037,

or flipbook  page 283
