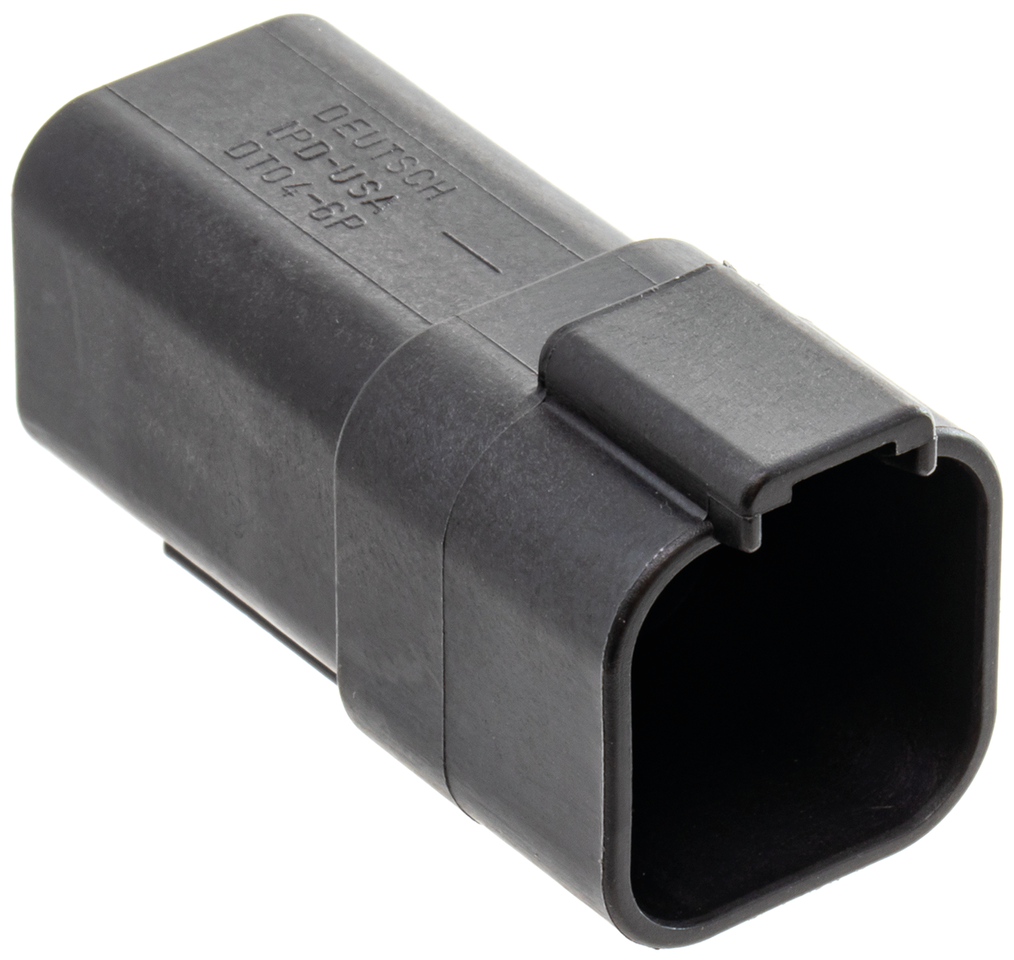

6 Pole black pin housing, Deutsch Connectors

Deutsch Connector 6 pin, 6 Pin black receptacle (OEM 72106-94BK), 6 Pole black pin housing, Deutsch Connectors

The greatest invention since electric cables! Ideal for custom wiring or as replacement on OEM wiring harnesses. Best proof of the quality from these connectors is that many OEM manufacturers including the Factory in Milwaukee use them. Our wide variety of components leaves nothing else to wish for. The waterproof connectors feature a special design lock-up system to secure the connectors and avoid accidental separation. Available for 2, 3, 4, 6, 8 and 12 pin connectors. All parts to make up a complete connector have to be ordered separately.

For example you want to connect 5 cables, in order to do this you need:
1×6 Pin receptacle ZPN741519
1×6 Pin plug ZPN741522
1xWedge for 6 pin plug ZPN741523
1xWedge for 6 pin receptacle ZPN741520

Pin and socket contacts are available for 0.5-1.0mm² or 1.0-2.0mm² wires

For 0.5-1.0mm² wires:
5xSingle pin contact ZPN741536
5xSingle socket contact ZPN741537

For 1.0-2.0mm² wires:
5xSingle pin contact ZPN741538
5xSingle socket contact ZPN741539

Note: This is just an example. If a different number of wires is used, a different combination of component is used.

72106-94BK

in Stock 3+

Brand: Deutsch Connectors
Article number:  741519

This product can be find in categorie Wiring & Connectors

Deutsch Connector 6 pin, 6 Pin black receptacle (OEM 72106-94BK)

———————————————————————————————————–

For more info about this product see our Catalog  04-079,

or flipbook  page 241

See link our Flipbook
