16″ (40.5cm) rise Chicano style Ape HangerB=27.5cm, C=90cm, D=22.5cm, E=30cm, F=12cm, G=9cm, dimple style B, Black, TBW Gen 1

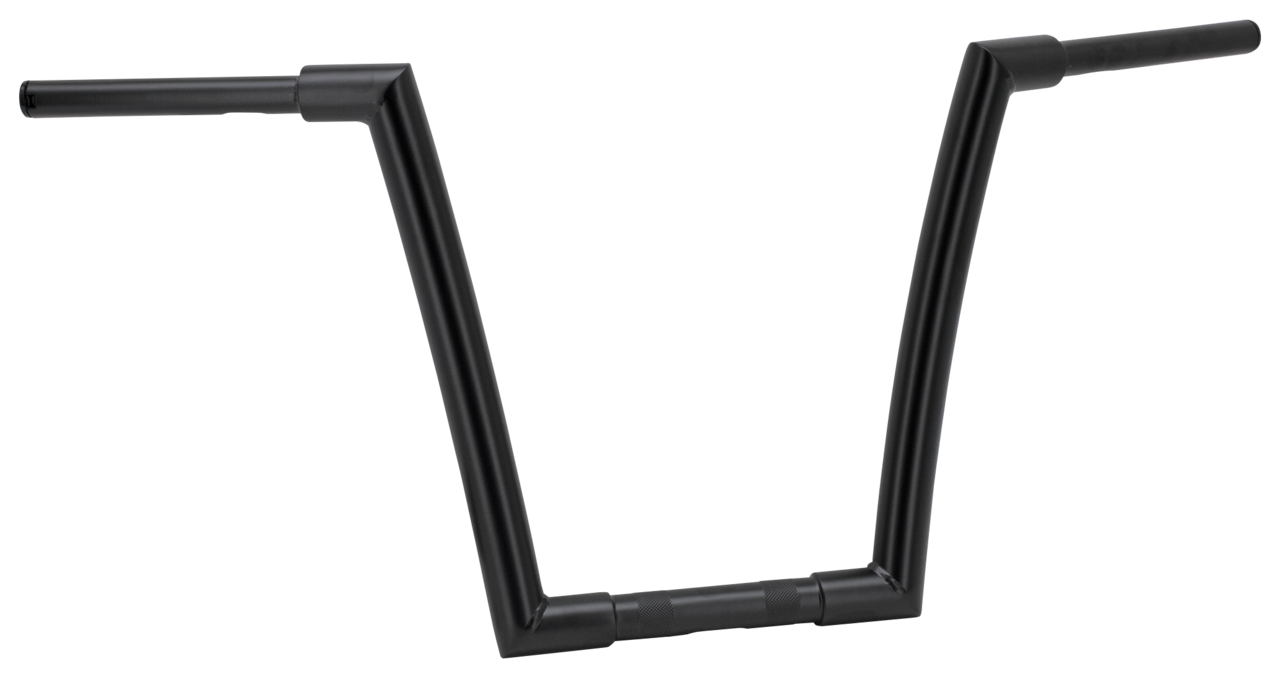

ZCP Chicano Ape 16″ black f/ 1.25″risers

16″ (40.5cm) rise Chicano style Ape HangerB=27.5cm, C=90cm, D=22.5cm, E=30cm, F=12cm, G=9cm, dimple style B, Black, TBW Gen 1

Beefy 1.5″ (38mm) diameter handlebar for use with 1 1/4″ (32mm) handlebar clamps and standard controls. Bars are dimpled and drilled for internal wiring and work with TBW Gen 1 as on CVO Softail 2011-2015, all  Softail 2016-2024, FXDLS 110CI 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008 to present and 117CI Touring 2018-2023.  All handlebars are TIG welded by hand.

in Stock 3+

Brand: Zodiac Custom Products
Article number:  053765

Beefy 1.5″ (38mm) diameter handlebar for use with 1 1/4″ (32mm) handlebar clamps and standard controls. Bars are dimpled and drilled for internal wiring and work with TBW Gen 1 as on CVO Softail 2011-2015, all  Softail 2016-2024, FXDLS 110CI 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008 to present and 117CI Touring 2018-2023.  All handlebars are TIG welded by hand.

This product can be find in categorie Fat Handlebars for 1 1/4″ handlebar clamps

16″ (40.5cm) rise Chicano style Ape HangerB=27.5cm, C=90cm, D=22.5cm, E=30cm, F=12cm, G=9cm, dimple style B, Black, TBW Gen 1

A. Rise B. End Rise C. Width D. Center Width E. Base Width F. Pull Back G. Knurl (center-to-center)

Dimple styles:
A. Dimples at the underside
B. Slotted at the underside
C. Dimples & Slotted at the underside
D. Slotted at the front as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present

A. ZPN 090012 Adapter spacer to install cable throttle on bars notched for TBW-Gen.1
Throttle-By-Wire
B. Generation 1 (TBW-Gen.1) is the electronic throttle as on CVO Softail 2011-2015, all Softail 2016-2024,  110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008-2024 and 117CI Touring 2018-2023. These bars are notched and approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.
C. Generation 2 (TBW-Gen.2) is the electronic throttle as on RA Pan America and RH Sportster 2021 to present. These have the Throttle Grip Sensor inside the switch housing.
D. Generation 3 (TBW-Gen.3) is the electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI  Touring 2024 to present and all Softail 2025 to present. These bars have dowel pin holes for the handlebar controls and the Throttle Grip Sensor inside the switch housing

https://cdn.zodiac.nl/media/zodiac-generated/88f02397/3bee/4dd6/9381/54451e84735a/standard-rgba.png

———————————————————————————————————–

For more info about this product see our Catalog page 14-094, 1

See link our Flipbook
