13” (33cm) high Phat Ape HangerA=33cm, B=23cm, C=92cm, D=24cm, E=36cm, F=22cm, G=8,9cm, Black 13” Ape Hanger, dimple style B

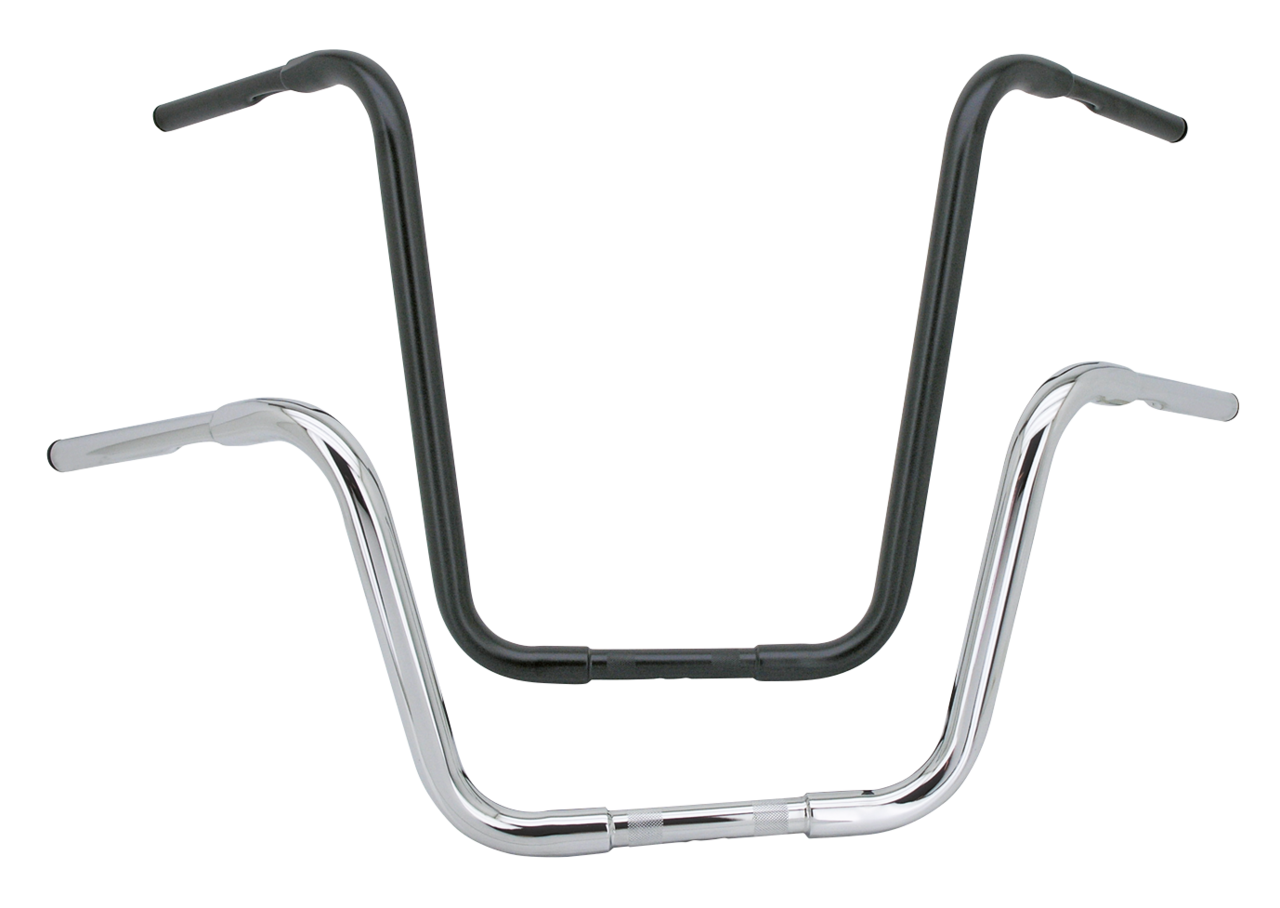

GZP Blck 1-1/4″ Apehanger handlebar 13″

13” (33cm) high Phat Ape HangerA=33cm, B=23cm, C=92cm, D=24cm, E=36cm, F=22cm, G=8,9cm, Black 13” Ape Hanger, dimple style B

Ape Hanger handlebars have never been away. Zodiac’s Ape Hangers are made from heavy gauge 1 1/4″ tubing. All handlebars have Mandrel bends, your guarantee for perfect symmetrical looks and a constant diameter throughout the bar. These ultimate stylish handlebars feature “reduced end” design to fit most standard or aftermarket controls, grips and risers. It strongly recommended to fit these handlebars with one-piece top riser clamps. Not suitable for Throttle-By-Wire.

in Stock 3+

Brand: Zodiac (Genuine Zodiac Products)
Article number:  096411

Ape Hanger handlebars have never been away. Zodiac’s Ape Hangers are made from heavy gauge 1 1/4″ tubing. All handlebars have Mandrel bends, your guarantee for perfect symmetrical looks and a constant diameter throughout the bar. These ultimate stylish handlebars feature “reduced end” design to fit most standard or aftermarket controls, grips and risers. It strongly recommended to fit these handlebars with one-piece top riser clamps. Not suitable for Throttle-By-Wire.

This product can be find in categorie Fat Handlebars for one inch handlebar clamps

13” (33cm) high Phat Ape HangerA=33cm, B=23cm, C=92cm, D=24cm, E=36cm, F=22cm, G=8,9cm, Black 13” Ape Hanger, dimple style B

A. Rise B. End Rise C. Width D. Center Width E. Base Width F. Pull Back G. Knurl (center-to-center)

Dimple styles:
A. Dimples at the underside
B. Slotted at the underside
C. Dimples & Slotted at the underside
D. Slotted at the front as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present

A. ZPN 090012 Adapter spacer to install cable throttle on bars notched for TBW-Gen.1
Throttle-By-Wire
B. Generation 1 (TBW-Gen.1) is the electronic throttle as on CVO Softail 2011-2015, all Softail 2016-2024,  110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008-2024 and 117CI Touring 2018-2023. These bars are notched and approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.
C. Generation 2 (TBW-Gen.2) is the electronic throttle as on RA Pan America and RH Sportster 2021 to present. These have the Throttle Grip Sensor inside the switch housing.
D. Generation 3 (TBW-Gen.3) is the electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI  Touring 2024 to present and all Softail 2025 to present. These bars have dowel pin holes for the handlebar controls and the Throttle Grip Sensor inside the switch housing

———————————————————————————————————–

For more info about this product see our Catalog page 14-021, 0

See link our Flipbook
