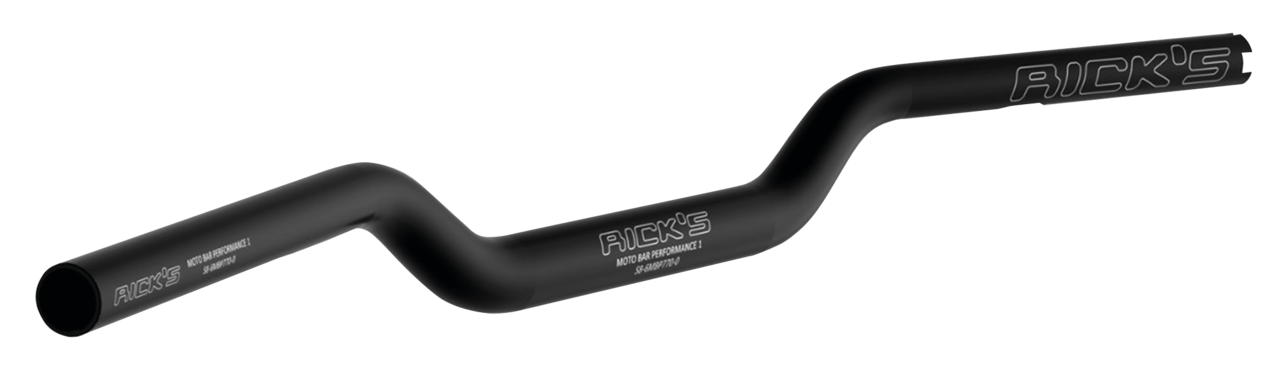

1.9″ (48mm) riseA=4.8cm, C=81cm, F=7.8cm, TBW-Gen.1 Performance 1 Moto Bar, dimple style B, black (OEM 55800858)

Perf. 1 Moto Bar 1.25″ Blk 770mm TBW-V1

1.9″ (48mm) riseA=4.8cm, C=81cm, F=7.8cm, TBW-Gen.1 Performance 1 Moto Bar, dimple style B, black (OEM 55800858)

Rick’s Clubstyle handlebars are made in Germany from high-strength 6061-T6 aluminum. They have a 3.6mm wall thickness and 1.25″ (31.8mm) diameter in the riser clamping area and offer 25% more stability than other manufacturers. Bars are finished with a hard black anodize and tapered to a 1″ (25.4mm) diameter at the ends to take OEM HD switches, levers and grips.

TBW-Gen.1 bars are notched for electronic throttle as on CVO Softail 2011-2015, all  Softail 2016-2024, 110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008 to present and 117CI Touring 2018-2023. These bars are notched and approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.

TBW-Gen.3 bars have the dowel pin holes for the handlebar controls and electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present.

55800858

in Stock 2

Brand: Rick’s Motorcycles
Article number:  770134

Rick’s Clubstyle handlebars are made in Germany from high-strength 6061-T6 aluminum. They have a 3.6mm wall thickness and 1.25″ (31.8mm) diameter in the riser clamping area and offer 25% more stability than other manufacturers. Bars are finished with a hard black anodize and tapered to a 1″ (25.4mm) diameter at the ends to take OEM HD switches, levers and grips.

TBW-Gen.1 bars are notched for electronic throttle as on CVO Softail 2011-2015, all  Softail 2016-2024, 110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008 to present and 117CI Touring 2018-2023. These bars are notched and approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.

TBW-Gen.3 bars have the dowel pin holes for the handlebar controls and electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present.

This product can be find in categorie Fat Handlebars for 1 1/4″ handlebar clamps

1.9″ (48mm) riseA=4.8cm, C=81cm, F=7.8cm, TBW-Gen.1 Performance 1 Moto Bar, dimple style B, black (OEM 55800858)

A. Rise B. End Rise C. Width D. Center Width E. Base Width F. Pull Back G. Knurl (center-to-center)

Dimple styles:
A. Dimples at the underside
B. Slotted at the underside
C. Dimples & Slotted at the underside
D. Slotted at the front as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present

A. ZPN 090012 Adapter spacer to install cable throttle on bars notched for TBW-Gen.1
Throttle-By-Wire
B. Generation 1 (TBW-Gen.1) is the electronic throttle as on CVO Softail 2011-2015, all Softail 2016-2024,  110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008-2024 and 117CI Touring 2018-2023. These bars are notched and approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.
C. Generation 2 (TBW-Gen.2) is the electronic throttle as on RA Pan America and RH Sportster 2021 to present. These have the Throttle Grip Sensor inside the switch housing.
D. Generation 3 (TBW-Gen.3) is the electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI  Touring 2024 to present and all Softail 2025 to present. These bars have dowel pin holes for the handlebar controls and the Throttle Grip Sensor inside the switch housing

https://cdn.zodiac.nl/media/zodiac-generated/88f02397/3bee/4dd6/9381/54451e84735a/standard-rgba.png

———————————————————————————————————–

For more info about this product see our Catalog page 14-094, 1

See link our Flipbook
